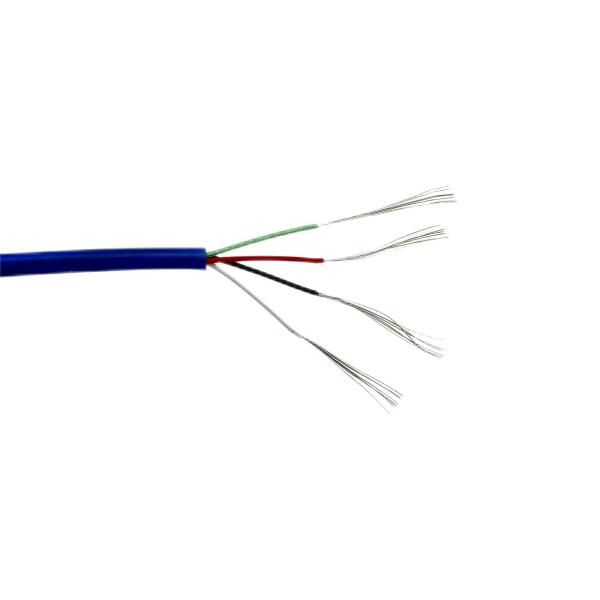

Details:SIHF

Conductor: tinned copper
Section Area: 30awg
Construction: 7/0.10
Insulation: FEP
Jacket: Silicone Rubber
Jacket Color: Blue
O.D.: 2.5mm

We got an inquiry from a medical beauty company who asked for a 4- core multi core cable data use medical device cable with O.D. no more than 2.5mm. we studied carefully the requirement, and decided to use FEP as insulation, so we can make a thinner, lighter cable, 4x30 awg which is good for data and signal transmission. For the outer sheath, we have 2 choices, one is FEP, the other is silicone, considering the cable is connecting the medical device and moving installation points, we finally chose silicone as jacket, it’s flexible enough and oil-resistant, anti-bio performance which are workable for medical appliances.

Actually, for medical use, we need to consider the Outer Diameter, as most appliances-mold is ready, cable supplier has limitation of the O.D. to design a medical cable, secondly, we need to take the actual application into account, how many cores for data use, we need to use small gauges, for medical use, the Voltage usually very low, for this example, we take 30 awg. And finally, the outer jacket is very important, as we have to face movable installation, so the material must be flexible, bear resistant, oil, resistant and Anti bacteria.

Dingzun Cable has 18 years of custom experience, our cables are widely used in medical, petrochemical, building, and military fields.

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a high-tech enterprise was established in 2005, which engaged in special wire and cable research, development, design, manufacturing.

Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has strong technical force, existing staff 132 people, including senior titles of professional and technical personnel 26 people, with our own invention patent. We understand the technical standards and production standards of wire and cable of various countries in the world, can design and produce 6 categories, more than 800 types and specifications of wire and cable. The annual output reaches 70 million meters. The main products are high temperature resistant wire and cable, high voltage resistant wire and cable, shielded cable, coaxial cable, thermocouple compensation wire and other special wire and cable. Products are widely used in aerospace, electronic appliances, instrumentation, metallurgy and chemical industries, especially for high temperature, low temperature, strong acid, strong alkali, high oil, strong radiation and other harsh working environment.

Currently our company has two production workshops, nearly 5000 square meters of production space, equipped with 18 production lines of various types, 156 other auxiliary production equipment, 48 testing equipment, including 36 inline testing equipment. Complete testing equipment guarantee premium product quality, meanwhile strong production capacity ensures timely order delivery.

The company has passed ISO9001:2015 international quality management system certification, our products have passed CCC compulsory certification in China, UL certification in the United States, CE certification in the European Union, and our products are sold to the United States, Europe, Japan and other countries and regions. Our system certification, product safety certification and global customers praise prove that our products are trustworthy. In addition, the wire and cable we produce also passed RoHS testing, in line with the environmental requirements of the European Union, we protect our common green home together with you.

According to customer requirements, we can also do custom design, production, to meet customer specific requirements of wire and cable, or according to customer construction drawings to make product customization.
