    PTFE Insulated High Temperature Cable 16awg

    Ask Lasest Price
    Brand Name : dingzun
    Model Number : z-84
    Certification : ul
    Price : 1M/0.45~4USD
    Payment Terms : L/C, T/T
    Supply Ability : 1000M/1DAYS
    Delivery Time : 15DAYS
    MOQ : 500M
    • Product Details
    • Company Profile

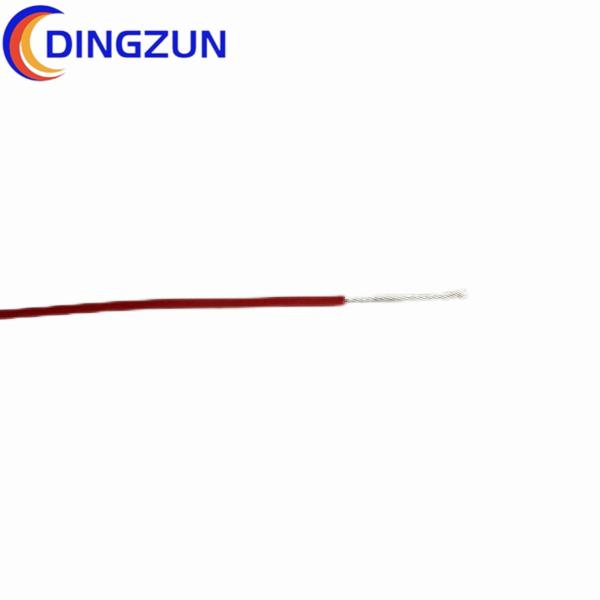

    PTFE Insulated High Temperature Cable 16awg

    Z-84

    Description: PTFE INSULATED HIGH TEMPERATURE CABLE 16AWG

    Details:
    Conductor: Nickel Plated Copper
    Construction: 19/0.30
    Insulation: PTFE
    Cores: 1
    O.D.: 2.15mm
    Rated temperature: -60℃---+260℃
    Rated Voltage: 300/500V
    Type: high temperature cable

    Features:
    heat resistance

    PTFE Insulated High-Temperature Cable in 16AWG, a reliable cable designed to withstand extreme temperatures and provide excellent heat resistance for various applications.

    The conductor of the cable is made of nickel-plated copper, which offers excellent conductivity, corrosion resistance, and enhanced heat resistance. It has a construction of 19/0.30, indicating that it consists of 19 strands of copper wire, each with a diameter of 0.30mm. This construction provides flexibility and durability to the cable.

    The core of the cable is insulated with PTFE (Polytetrafluoroethylene), a high-performance insulation material known for its exceptional electrical properties and resistance to heat and chemicals. The PTFE insulation ensures reliable electrical insulation and maintains signal integrity even at high temperatures.

    The cable consists of a single core, making it suitable for applications that require the transmission of a single signal or data.

    The outer diameter (O.D.) of the cable is 2.15mm, providing a compact size that allows for easy installation and routing in various environments.

    The cable is rated for a wide temperature range from -60℃ to +260℃, making it highly suitable for applications in extreme temperature conditions.

    It is also rated for a voltage of 300/500V, making it suitable for both low and medium voltage applications.

    The key feature of this cable is its exceptional heat resistance. It is specifically designed to withstand high temperatures, ensuring reliable performance even in demanding heat-intensive environments.

    PTFE Insulated High-Temperature Cable in 16AWG is a reliable and durable cable designed for high-temperature applications. With its nickel-plated copper conductor, PTFE Insulated High-Temperature Cable in 16AWG is a reliable and durable cable designed for high-temperature applications. With its nickel-plated copper conductor, PTFE insulation, and compact size, this cable provides excellent heat resistance and reliable signal transmission. Trust in this cable to deliver consistent and dependable performance in various high-temperature environments
