    High Temperature Cable For Motor Lead Cable

    Ask Lasest Price
    Brand Name : Dingzun
    Model Number : 09-25
    Certification : CE,UL,ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000m/day
    Delivery Time : 15days
    • Product Details
    • Company Profile

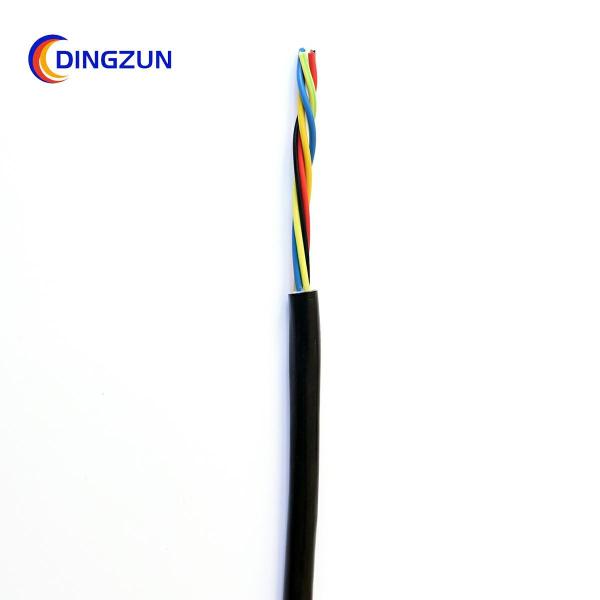

    High Temperature Cable For Motor Lead Cable

    FEP / PFA Insulaton Motor Lead Cable For High Temperature Motors

    WG
    AWG
    Conductor
    (mm)
    Avg.Insulation Thickness(mm)
    Jacket Thickness(mm)
    OD
    (mm)
    2*26
    26
    7/0.16
    0.76
    1.14
    6.3±0.2
    3*26
    6.6±0.2
    4*26
    7.1±0.2
    5*26
    7.7±0.2
    2*24
    24
    7/0.20
    0.76
    1.14
    6.5±0.2
    3*24
    6.9±0.2
    4*24
    7.4±0.2
    5*24
    8.0±0.2
    2*22
    22
    7/0.254
    0.76
    1.14
    6.9±0.2
    3*22
    7.2±0.2
    4*22
    7.8±0.2
    5*22
    8.5±0.3
    2*20
    20
    10/0.254
    0.76
    1.14
    7.2±0.2
    3*20
    7.6±0.2
    4*20
    8.2±0.3
    5*20
    8.9±0.3
    2*18
    18
    16/0.254
    0.76
    1.14
    7.7±0.3
    3*18
    8.1±0.3
    4*18
    8.8±0.5
    5*18
    9.5±0.5
    2*16
    16
    26/0.254
    0.76
    1.14
    8.3±0.3
    3*16
    8.8±0.3
    4*16
    9.6±0.5
    5*16
    10.4±0.5
    2*14
    14
    41/0.254
    0.76
    1.14
    9.1±0.5
    3*14
    9.6±0.5
    4*14
    10.5±0.5
    5*14
    11.5±0.5
    Remarks: able to produce according to customer’s requirement

    Introduction: tinned copper and fep insulation guarantee the good performence of heat resistance, and silicone rubber outer jacket assures cable working smoothly in a high temperature enviroment.

    Features: 6 cores cable including the earth yellow/green wire suitable for motors working, silicone rubber jacket features very flexible good for limited space and movable installation possibility perfect design and excellect electrical performances fitting the most industries

    Application: widely used for high temperature working condition specially for stepping motors and servo motors as lead wire
