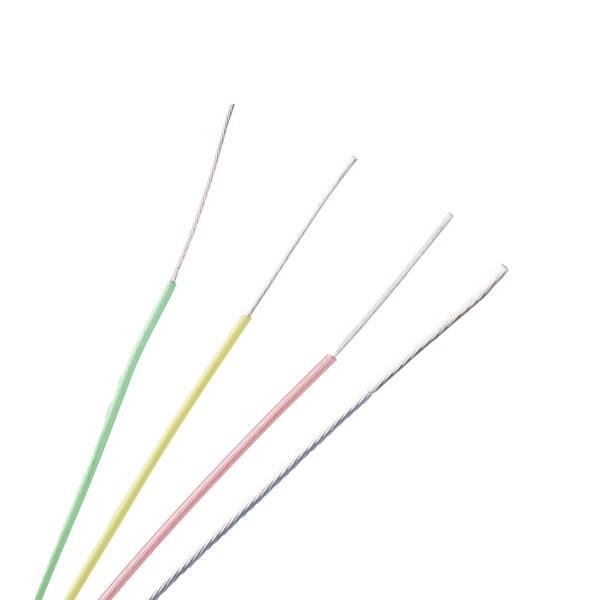

DingZun Cable Hot Selling Insulated AF200 FEP Wire for Electronic
Appliances
Technical Parameters
Details:HEAT 205
Rated Temperature:-65℃∽+200℃
Rated Voltage:600V
Conductor:solid/stranded Silver Copper
Insulation:FEP(F46)
Color: red, yellow, blue, white, black, green, brown, orange,
purple, yellow green, transparent etc.
Certificate/Standard: GJB773-2000
Application: widely used in electronic appliances, lighting,
instrumentation
Section (mm2) | Conductor No./ Dia. (mm) | Avg.Insulation Thickness (mm) | Overall Dia. (mm) | Max. Resistance 20℃(≤Ω/km) |
| 0.014 | 7/0.05 | 0.15 | 0.45 | 1343 |
| 0.030 | 1/0.20 | 0.15 | 0.50 | 560 |
| 0.035 | 7/0.08 | 0.15 | 0.55 | 525 |
| 0.05 | 7/0.10 | 0.15 | 0.60 | 330 |
| 1/0.26 | 0.17 | 0.60 | 386.9 |
| 0.07 | 1/0.30 | 0.20 | 0.70 | 245.0 |
| 0.08 | 7/0.12 | 0.20 | 0.76 | 227.0 |
| 0.12 | 7/0.15 | 0.25 | 0.95 | 146.0 |
| 1/0.40 | 0.20 | 0.80 | 146.9 |
| 0.20 | 7/0.20 | 0.25 | 1.10 | 83.5 |
| 1/0.50 | 0.25 | 1.00 | 94.0 |
| 0.35 | 19/0.16 | 0.25 | 1.30 | 49.5 |
| 0.50 | 19/0.18 | 0.25 | 1.40 | 36.0 |
| 1/0.80 | 0.30 | 1.40 | 36.7 |
| 0.75 | 19/0.23 | 0.28 | 1.70 | 22.7 |
| 1/0.97 | 0.26 | 1.50 | 24.7 |
| 1.0 | 19/0.26 | 0.28 | 1.85 | 19.0 |
| 1.13 | 1/1.20 | 0.30 | 1.80 | 16.5 |
| 1.2 | 19/0.28 | 0.30 | 2.00 | 15.3 |
| 1.5 | 19/0.32 | 0.32 | 2.25 | 11.7 |
| 2.0 | 19/0.37 | 0.32 | 2.50 | 9.45 |
| 2.5 | 19/0.41 | 0.40 | 2.85 | 6.86 |
| 4 | 37/0.37 | 0.40 | 3.39 | 4.51 |
| 6 | 37/0.45 | 0.50 | 4.15 | 3.05 |
| 8 | 133/0.28 | 0.50 | 5.20 | 2.16 |
| 10 | 133/0.32 | 0.50 | 5.80 | 1.68 |
| 16 | 133/0.39 | 0.60 | 7.00 | 1.13 |
| 20 | 133/0.45 | 0.60 | 8.00 | 0.886 |
| 25 | 196/0.40 | 0.60 | 8.80 | 0.734 |
| 35 | 494/0.30 | 0.70 | 10.40 | 0.511 |
| 50 | 396/0.40 | 0.80 | 12.20 | 0.358 |
| 70 | 551/0.40 | 1.00 | 14.60 | 0.270 |
| 95 | 760/0.40 | 1.20 | 17.20 | 0.210 |
| Remarks: able to produce according to customer’s requirements |
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. as a
high-tech enterprise was established in 2005, which engaged in
special wire and cable research, development, design,
manufacturing.
Shanghai Dingzun Special Electric Wire and Cable Co., Ltd. has
strong technical force, existing staff 132 people, including senior
titles of professional and technical personnel 26 people, with our
own invention patent. We understand the technical standards and
production standards of wire and cable of various countries in the
world, can design and produce 6 categories, more than 800 types and
specifications of wire and cable. The annual output reaches 70
million meters. The main products are high temperature resistant
wire and cable, high voltage resistant wire and cable, shielded
cable, coaxial cable, thermocouple compensation wire and other
special wire and cable. Products are widely used in aerospace,
electronic appliances, instrumentation, metallurgy and chemical
industries, especially for high temperature, low temperature,
strong acid, strong alkali, high oil, strong radiation and other
harsh working environment.
Dingzun Cable connecting the whole world, outputting surging power,
transferring the cooperation signal, shares opportunities and
future.
1. Are you a manufacture or trading company?
We are a professional manufacture over 18 years, and our factory
based in Shanghai. Warmly welcome to visit us.
2. Does your company accept OEM production?
Sure, our company policy is Order Oriented Customization, we could
print your brand and produce according to your specification, if
the minimum quantity achieved.
3. What about the lead time for mass production?
Our production capacity is sufficient, normally 10-20 days we can
deliver your order, only if quantity is big, we’ll offer you
specified delivery time.
4. What’s your minimum quantity?
Usually 100m, however cable is heavy product, the freight really
costs, we suggest a reasonable quantity.
5. How can I get a sample to check your quality?
Samples are free for customer; you only need to pay the courier
charge.
6. How does you company control the quality?
